I try to create a nodejs server that can read openice dds message. It just like what the hello-openice java program does but I want to do it on nodejs. I found out a npm module https://github.com/rticommunity/rticonnextdds-connector/blob/master/examples/nodejs/README.md, that can read dds message on nodejs. It requires to create a xml file, https://github.com/rticommunity/rticonnextdds-connector/blob/master/examples/nodejs/ShapeExample.xml. But I don't know how to fill in the openice version one.

Hi to all the OpenIce team.

I am a french resident trying to implement an OpenIce server in our surgical intensive care in Paris.

I followed the setup provided in the documentation, and mine is as described :

- Philips IntelliVue MP70

- Ethernet cable

- RJ45 to DB9 modular adapter

- RS232 serial cape

- BBB

- TP-Link router

- Personal computer with OpenIce Supervisor

I have checked all the steps and I think the cabling is good (I'm using a male DB9 connector so the pin layout is reversed from your picture).

I'm nonetheless stuck at the "Requesting Association" step.

One thing I have not been able to do is to synchronize the date since I cannot access any NTP server from the hospital due to administrative restrictions.

I have a few questions :

- Does the clock icon signaling that my BBB is not synchronized with a NTP server (I tried to input a manual time through the date command, to no avail) can lock the association phase ?

- This is a RevG MP70, do I need to change the pin layout in the modular RJ45/DB9 cable ?

- I can't seem to find any way or any file to debug the messages that are sent through the /dev/ttyO1 serial device. Can you point me to a way to solve this issue ?

I want to thank you a lot for all the hard work and I'm looking forward to giving a little back if I can.

Regards,

JP

I am trying to use the rs-232 option with an Intellivue MP50 on Windows 7 x64. It does not seem to open the serial port (I am assuming it will default to COM1?).

The demo-apps.log looks like this:

2016-09-06 10:14:33,625 | INFO | Loading System configuration from jar:file:/C:/Users/dnesmith/AppData/Local/OpenICE/app/demo-apps-0.6.3-SNAPSHOT.jar!/ice.system.properties | org.mdpnp.apps.testapp.Main | main

Hello,

What the most compatible OS for OpenICE, Windows or Linux ?

I want to test Open ICE with both Device Adapter and OpenICE Supervisor on the same PC. How can I do this ?

For the moment I don't have any medical device to test on it, how can I create a simulated Medical device on a PC ?

My bests

Imad

For particular arrays, I seem to be getting abnormally large numbers. For instance, for the plethysmographic trace (which I assume to be what MDC_PULS_OXIM_PLETH is for), I appear to be getting values around 30,000. And, for whatever DC_PRESS_BLD is, I get values around 500. Since all other values are so low, I have to ask. Is this intentional, I'm just uneducated in terms of medical data, or is this too large?

Hey,

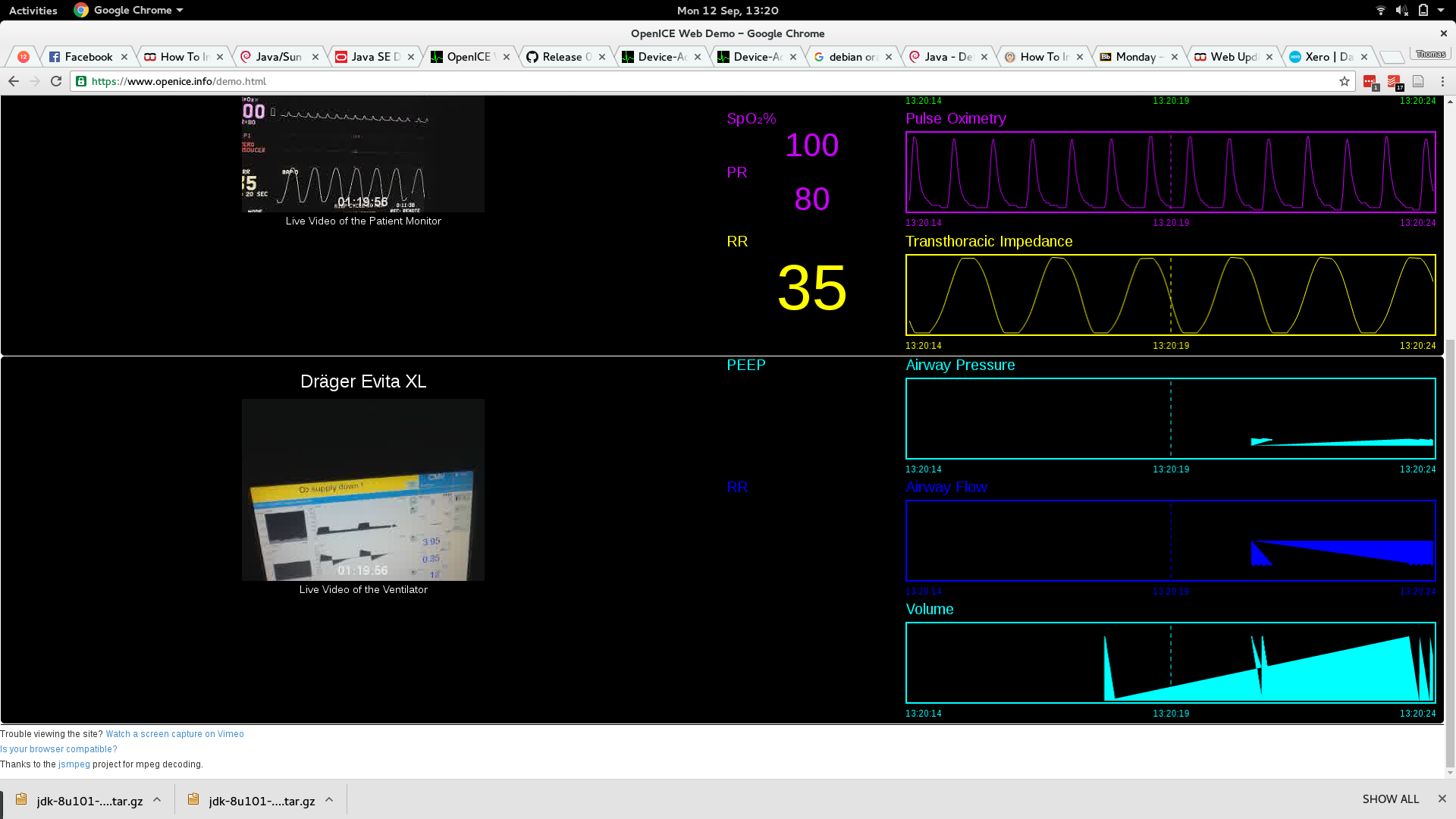

Having a look at your web demo, something seems off with your ventilator plots.

I have my own created Serial Medical device which acquire ECG Data. I have to integrate that device in OpenICE.

Hi Jeff,

I hope all is well with you. I just came across the Ebola demo video that you guys had posted on the website. I noticed that you guys were able to remotely control Smiths Medical 3500 Syringe pump, I guy name Jim Sareen I think in the video was demonstrating it. I’m trying to use it for a small animal project and would really appreciate your help in this matter.

is there a way for me to access the webstream using a tcp socket?

Hi,

The command "OpenICE -app ICE_Device_Interface -domain DOMAIN -device IntellivueEthernet -address IP_ADDRESS" did not work with IntellivueX2 connected by Ethernet because, according to Configuration.java, the argument -address is never read: if(ice.ConnectionType.Serial.equals(deviceType.getDeviceType().getConnectionType()){

...

Is there any inconvenience if i replace the code with this? if(ice.ConnectionType.Serial.equals(deviceType.getDeviceType().getConnectionType()) || ice.ConnectionType.Network.equals(deviceType.getDeviceType().getConnectionType())){

...

This change should be implemented in next release of OpenICE.

Hello Mdpnp team

I want to say change default configration . I am just asking if i have run the mdpnp program

Default Application Select is ICE_Device_interface , Device Category is Serial, Device Type is Drager Evita4 and Serial port is xyz is selected.

Thanks

I have add successfully dependencies

compile group: 'mysql', name: 'mysql-connector-java', version: '5.1.6'

and connection s is successfully established

but i dont know where data is stored ? I have to create the table name is mdpnp and create 5 columns .

It was successfully created ,but don't know where is going indata MySQL

I am trying to add jdbc driver "com.mysql.jdbc.Driver"

& Database url jdbc:mysql://192.168.1.105:1433/demo but its not working .

Please tell me how to add jdbc driver & Database Url of openice .

1. Have you attempted to connect to a MP90?
2. I've noticed that there is the function TestIntellivue() under TestIntellivue.Java, but it contains commented out functions that don't exist. Assuming I've read the documentation on exporting data from Philips devices, could you explain how OpenIce calls on devices/philips/Intellivue to connect to the MPxx device?

I have to create jar file but it's not working so plese tell me how to create a jar file of mdpnp project.
