Hello everyone,

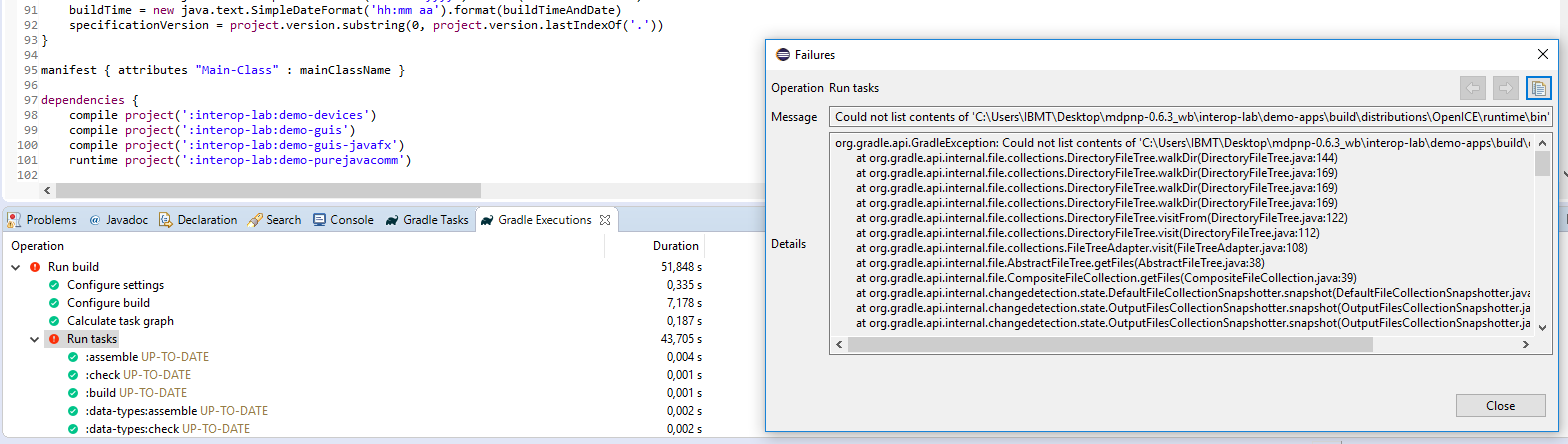

I have successfully import the mdpnp project for OpenICE in the eclipse, but when i try to run the gradle task mdpnp0.6.4, there is always error like this.

Does anyone knows what means this problem and does anyone knows the solution?

Thank you in advance.

I'm following the steps documented here, and it looks like the zip file containing the binaries are missing from the latest release downloads. Am'i missing something?

Hi,

From the documentation provided in website, I see that we can read data from medical devices such as patient monitors and ventilators.

Using Open ICE and Beaglebones, can we write some data (say list of values from a text file) to a certain parameter  (say pressure waveform) in ventilator?

The application is to simulate real time data in medical device and test how it behaves.

Please suggest.

We are trying to evaluate Medical devices to make it compliant to MDPnP or OR,NET or SCOT, is there any comparison done to these 3 technology.

I am new to these and even MDPnP, what would be the starting point for MDPnP and is there any documented steps what needs to be done to make our Medical devices compliant with MDPnP.

Currently, I am just looking at the feasibility only on paper for our device.

Is there any membership forum paid or free to participate and understand closely with the architects/Leads developing MDPnP?

Please let us know your views

Regards

Deepak

I've seen a few postings regarding connecting MP5s via Serial to a local PC to run the demo app.  So far i have been unsuccessful and am struggling to find the answers to a couple basic questions.  I just want to connect an MP5 via serial to a local PC running OpenICE.  When i set everything up the application just sits at "connecting".  And yes...I've double and tripple checked i am using the correct pinout for serial.  I'm aware the MP5 has a different pinout than other MP series philips monitors.  Here is what I have:

• OpenICE 0.6.3
• Windows 10 PC
• Philips MP5 rev F.01.43
• Tripplite  Keyspan USA-19HS USB-to-Serial adapter

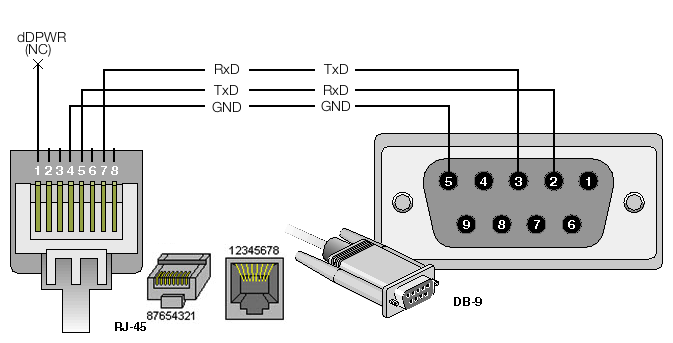

• Serial cable with the correct pinout for an MP5 (i've tripple checked this here and in the manual)

When i open OpenICE i select the ICE_Device_Interface, set device category to serial, and device type to Philips Intellivue (MIB/RS232).  Then click the start intellivueSerial button.  The application loads then sits there at "connecting":

Losing what's left of my hair trying to figure out what i am doing wrong...here are some of my questions:

1. I'm leaving the IP address blank since i am connecting to a serial device, is that correct?
2. I'm leaving the domain ID at 0, is that correct?
3. What baud rate and serial port is the application expecting and can i edit these settings?

Attached is a copy of my demo app log.  any direction of guidance would be appreciated.

demo-apps.log

when i setup device-adapter, I've already copied  BBB disk image to MicroSD card，and I using Netscape 7.1 to connect to BBB.Open 192.168.7.2,and I failed login. ueser:debian  password :debian.

It shows "The user or password error!". How could I connect to BBB?

Hello,

first I'd really like to thank all the people, who put so much effort in this project. I would love to use the software for a student project of mine, but I stumbled upon some difficulties realizing it. I will try to keep it short and just list some of the problems I encountered:

• When trying to use the .exe on a windows system and connecting the MP70 with a simple serial setup, I wasn't able to establish a connection. It's probably because of a GUI bug, which was mentioned in some other thread.
• After that I tried the .bat from the zip archive. With this build I was able to establish a connection with the device adapter, but the ICE_Supervisor would not start. The windows console states an "Exception in Application Start Method".
• Trying to build from Source using e(fx)clipse, there were some problems with the JavaFX class. com.sun.javafx.Util should be com.sun.javafx.utils.Util After correcting this I was able to build until the test phase, which gave me the following errors:

org.mdpnp.apps.testapp.export.CSVPersisterTest > testCVSLine FAILED
org.junit.ComparisonFailure at CSVPersisterTest.java:28

org.mdpnp.apps.testapp.export.VerilogVCDPersisterTest > testBasicDataStream FAILED
org.junit.ComparisonFailure at VerilogVCDPersisterTest.java:67

I uploaded my test results and the demo-apps.log here: https://drive.google.com/drive/folders/0B2ziQOvyeT-wVDNJcWg1NVAyV28?usp=sharing

Hopefully my descrption is not as confusing as it seems to me. I don't think there is a problem with the testapp, but maybe some incompatbility problems regarding the use of JavaFX and newer versions of the JDK. But I really have no idea, where to start searching. The device adapter and device communication seem to work.

If anyone has an idea how to fix or locate the problem I'd be really thankful :)

Kind regards,

Willy

Greeting to All,

I am Using OpenDDS3.12. I follow steps for Monitoring tool which is given in userguide.htm. It is working fine with DCPSInfoRepo - repository mode.  But I want to run the publish , subscribe program as rtps_udp mode. Is there possibility to monitor rtps_udp publish and subscribe program. It is required for my project.

Note : Publish - Program gives data to subscribe periodically. Means that , No termination happend.

Subscribe - program gets data from publish whenever data is alive.

I was able to build OpenICE successfully and run the demos which was great! I have a question though, how do types get generated under the RTI data types directory? I noticed that the project depends on a dependency:

rtiddsgen group: 'com.rti.dds', name: 'rtiddsgen', version: '5.1'

Is that available for newer versions of RTI? Is that in pure java? I guess I could just call the regular generator from a shell command. I like how you can call a main java class though.

openice supervisor does not open although process is running, also geting openice.exe stopped working when trying to enter device setup. Have reinstalled several time. Running on windows 7 pc, java version 8 update 151. Openice installed using windows execeutible file

Hi

Is it possible to connect an OpenICE device adapter eg BBB to the serial output of a intellivue MP70 that is already connected to a phillips central monitoring hub over an ethernet network?

Do the intellivue monitors support outputting data over a network and simultaneously to their serial port?
